RIGS

RIGS04 · RIGS06 · RIGS09

RIGS

Servo tables

Mechanism

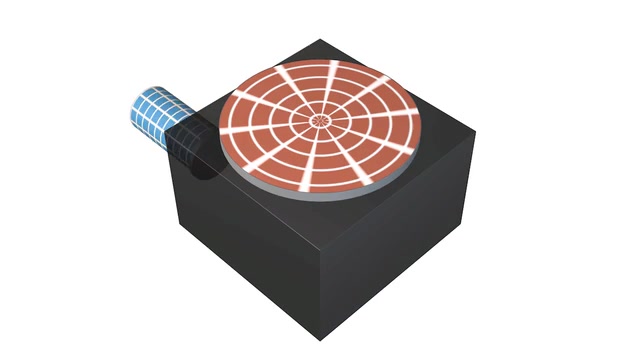

Rotary table with constant lead globoidal cam
Function
Rotary table system with a constant transmission ratio combined with a planetary gearbox.
Features
Watertight aluminium housing, output dial supported by cross roller bearing; preloaded cam system with zero backlash.
Dynamic torque
From 30 Nm to 1,000 Nm.
Total available ratio
1:80 and 1:160.
Output dial speed
Up to 65 rpm.
Indexing accuracy
± 30 arcsec
Flatness
0.01 mm.
Supply options
Mechanism complete with planetary gearbox designed for a servomotor.
Lubrication
Oil bath with mineral or food-grade oil
Certification
IP64
Accessories and spare parts Request information
