Mechanism

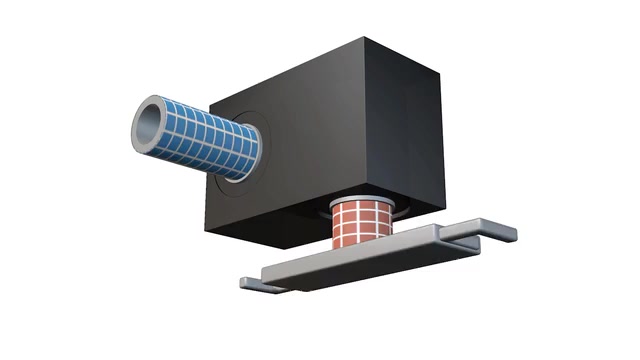

Two-axis combined system with globoidal cam and planar cam.
Function
Tool or workpiece changing specifically for horizontal-axis exchange.
Features
Watertight cast iron housing; input shaft supported by a pair of tapered roller bearings; preloaded globoidal cam system; self-locking mechanism in dwell.
Tool tapers
From ISO40 – HSK 50 to ISO 50 – HSK 100.
Gripper arm
Up to 900 mm.
Exchange time (tool-to-tool)
Up to 0.5 s.
Supply options
Mechanism only or complete with motorisation and control accessories for machine integration.
Automatic tool change
without interrupting the cycle
